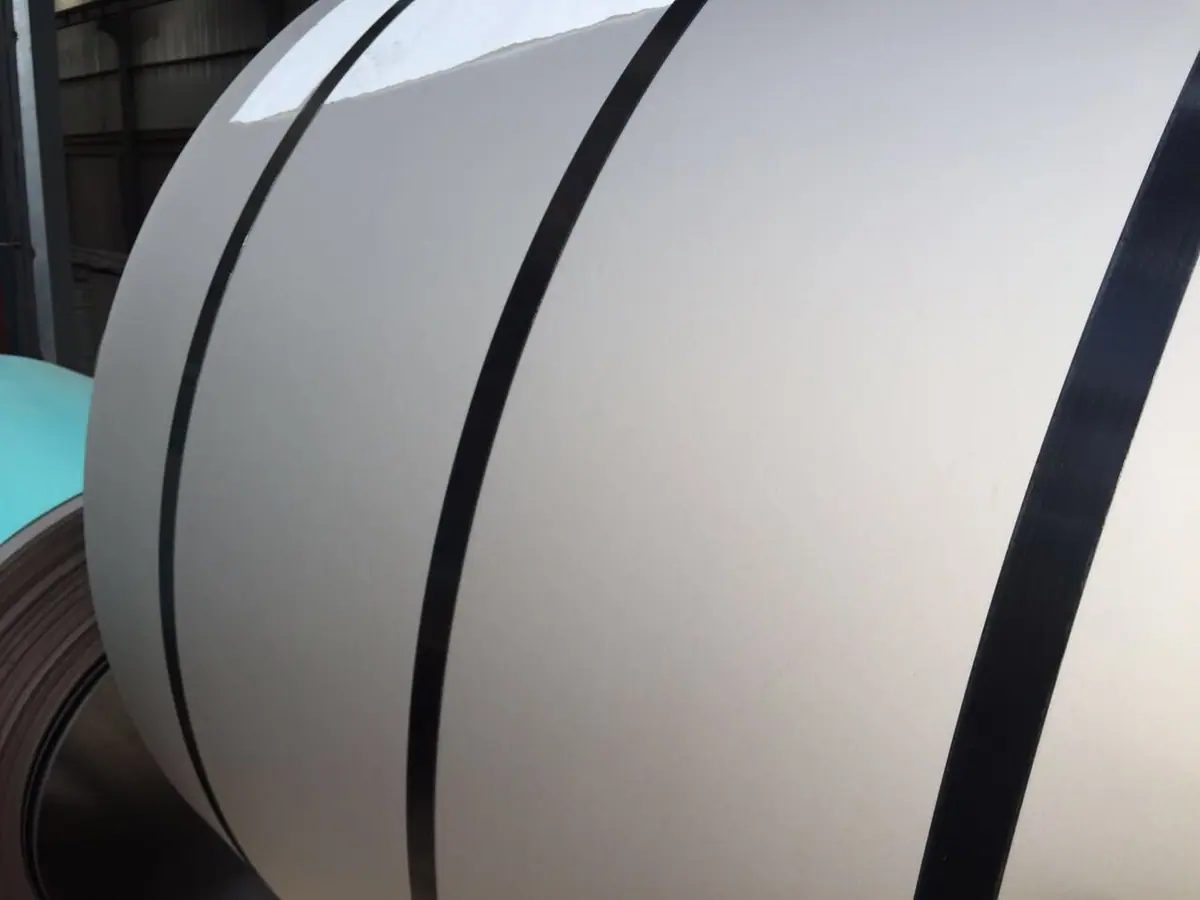

Titanium Coil, Foil & Strip
Titanium foil and strip 0.03–0.5 mm thick, widths 30–600 mm, in Gr1 and Gr2 annealed condition — supplied in coil or slit to cut-sheet. The thin end of our plate line: gaskets, electrode blanks and shielding laminates start here.
Specification Table
| Item | Value |
|---|---|
| Thickness | 0.03 – 0.5 mm |
| Width | 30 – 600 mm |
| Length | 30 – 2000 mm (sheet) or coil |
| Grades | Gr1 · Gr2 (annealed) |
| Pack | Coil on spool or interleaved sheets |

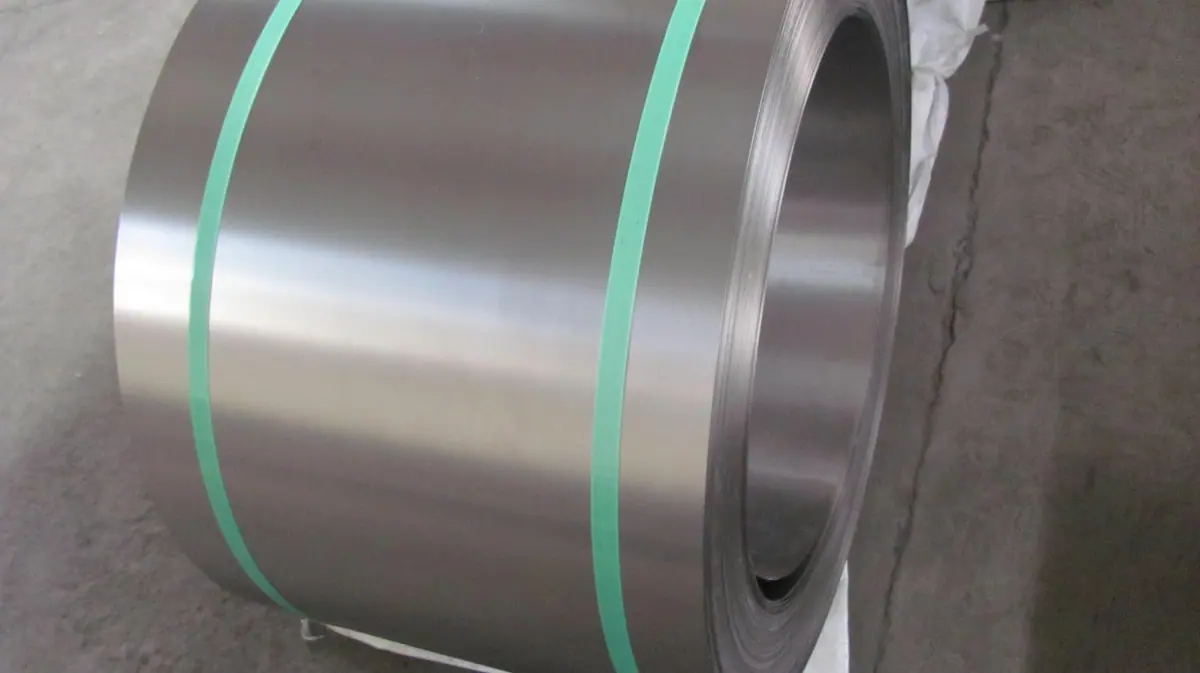

Coil vs Cut-Sheet
Foil under ~0.2 mm handles best backed and slit; thicker strip can be decoiled and flattened to sheet. State which your press or die expects.
Typical Uses (as market categories, not guarantees)
Soft Gr1 foil for gasket and seal shims; anode and electrode substrates in electrochemical processing; thin stock that continues into our plate & sheet range at 0.3 mm and above.
FAQ
Is your foil battery-grade?
We supply commercially pure titanium foil to published specifications; battery-grade acceptance depends on your surface and purity spec — send it for confirmation.
Minimum foil order?
Foil slitting has schedule minimums; send thickness × width × quantity.
Can foil be supplied adhesive-backed?
Lamination is outside our direct mill scope; plain foil only, cut and packed for forming.
