Titanium Flanges
Titanium weld-neck, slip-on, blind and long- Welding-neck flanges machined from bar or forged rings in Gr1–Gr5, to ASME B16.5, EN 1092-1 and HG 20592 references — with 19+ real photographs of stock shapes below.
Flange Types & Facings
| Type | Typical use |
|---|---|
| Weld neck (WN) | High pressure / temperature piping; butt-weld hub |
| Slip-on (SO) | Low-pressure process lines, easy fit-up |

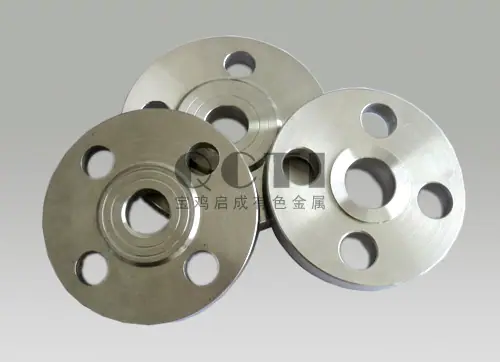

| Blind (BL) | Vessel closures, test plugs |
| Threaded | No-weld sites, instrument connections |
| Facing | Raised face (RF), flat face (FF), RTJ per class |
Standards
ASME B16.5 (NPS/class), EN 1092-1 (DN/PN), HG 20592/20615 for Chinese chemical-industry practice. Tell us standard + size + class; we machine to the facing detail you name.
Sizes & Pressures
Rather than publish a grid we cannot hold, flange enquiries are quoted against your schedule: NPS/DN, class/PN, facing, quantity, and the tube OD it mates to (we consolidate tube + flange orders routinely).
From Tube to Flange — Matched Orders
Piping projects buy the run and the termination together: tube, elbows, and flanges in one container, same heat traceability chain. Our custom supply service covers the multi-material version of the same job.
